ELECTRICIAN 2nd YEAR MODULE – Control Panel Wiring ONLINE TEST

Question 1 of 37

1. Why the motor is not changing the direction, if reverse push button is pressed in forward and reverse control star delta starter?

No volt coil is not energized

No voltage exist in reverse contactor

Fault in forward contactor

Due to interlock in reverse contactor

Question 1 of 37

Question 2 of 37

2. What happens if time delay relay of an auto star-delta starter remains in closed condition after starting?

Runs in delta only

Starts and stop

Runs normally

Runs in star only

Question 2 of 37

Question 3 of 37

3. How should control circuit voltage and power in a contactor be selected?

As per no volt coil rating

As per rated current

As per supply voltage

As per the type of supply

Question 3 of 37

Question 4 of 37

4. Which supply is indicated by the color of conductor exhibited on Red, Blue and Black?

Supply DC 3 wire system

Single phase AC system

Apparatus AC system 3 phase

Supply AC system 3 phase

Question 4 of 37

Question 5 of 37

5. Which accessory is used to mount MCB, OLR in the panel board without using screws?

G. channel

DIN Rail

Grommets

PVC channel

Question 5 of 37

Question 6 of 37

6. Why are control panels provided with control transformer?

To operate the auxiliary circuits

To maintain rated voltage to load

To maintain rated main supply voltage

To supply reduced voltage to power circuit

Question 6 of 37

Question 7 of 37

7. Which device protects from overload and short circuit in a panel board?

Isolating switch

Time delay relay

Miniature circuit breaker

Thermal overload relay

Question 7 of 37

Question 8 of 37

8. What is the purpose of control transformer used in control panel wiring?

To control the supply voltage to the contactor

To protect the control elements from over voltage fault

To maintain constant terminal voltage

To supply the power to the auxiliary circuits

Question 8 of 37

Question 9 of 37

9. Which is the correct sequence operation of contactors for operating automatic star-delta starter?

Main→Star→Delta→Timer

Star→Main→Timer→Delta

Main→Timer→Delta→Star

Star→Timer→Main→Delta

Question 9 of 37

Question 10 of 37

10. What is the purpose of DIN-rail used in control panel wiring?

Install the high powered circuit accessories

Mounting the double deck terminal connectors

Mounting the control accessories without screws

It provides a pathway for electrical wiring

Question 10 of 37

Question 11 of 37

11. Which circuit uses limit switches?

Street lighting

Lift circuits

Domestic power circuits

Motor control circuits

Question 11 of 37

Question 12 of 37

12. What is the function of limit switch in control panel wiring?

Controls distance movement of any machine

Controls machine from over loading

Controls machine from over heat

Controls machine from over speed

Question 12 of 37

Question 13 of 37

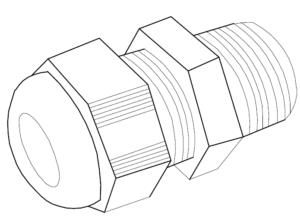

13. What is the name of the accessory used in control panel wiring?

Terminal connector

Thimble

Lugs

Grommet

Question 13 of 37

Question 14 of 37

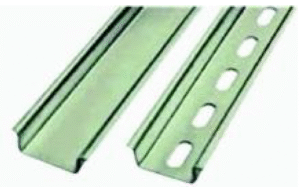

14. What is the name of the wiring accessory used in control panel wiring?

Grommets

G channel

Race ways

DIN rails

Question 14 of 37

Question 15 of 37

15. Which switch with an actuator is operated by the motion of a machine or part of an object?

Isolating switch

Limit switch

Toggle switch

Push button switch

Question 15 of 37

Question 16 of 37

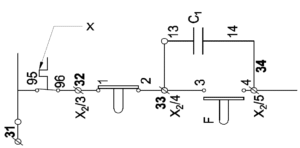

16. What is the name of the device marked as 'X'?

Main contact

Start button

Auxiliary contact

Stop button

Question 16 of 37

Question 17 of 37

17. Which type of device protects motors from over heating and over loading in a panel board?

Rectifier

Thermal relay

Electro mechanical relay

Limit switch

Question 17 of 37

Question 18 of 37

18. Which is the standard duty cycle code of the contactor for starting and stopping the AC resistive and inductive load?

AC₁

AC ₃

AC₄

AC₂

Question 18 of 37

Question 19 of 37

19. What is the criteria to select the contactor?

Type of supply

Supply voltage and load

Type of load connected

Place of use the contactor

Question 19 of 37

Question 20 of 37

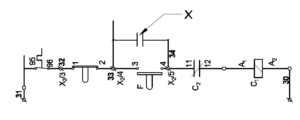

20. What is the name of the device marked as 'X' in the circuit?

Over load relay trip

Contactor

Stop button

No volt coil

Question 20 of 37

Question 21 of 37

21. What is the use of PVC channel in a control panel wiring?

Mounting double deck terminal contactor

Mounting MCB

Mounting relays

Pathway for electrical wiring and protection

Question 21 of 37

Question 22 of 37

22. What essential feature to be considered while designing a layout of control panel?

Suitable method of labelling and cable harnessing

Proper type of protection and measuring system

Inside area and number of indicating lights in front panel

Outside dimensions and swing area of cabinet door

Question 22 of 37

Question 23 of 37

23. Which cable ties are used to bunch the wires?

P.V.C ties

Cotton ties

Nylon ties

Silk ties

Question 23 of 37

Question 24 of 37

24. Which device prevents flare out of stripped and stranded cables in the panel board?

Cable binding straps and button

Lugs and thimbles

Sleeves

Wire ferrules

Question 24 of 37

Question 25 of 37

25. Why is sequential control of motors required in industrial applications?

To minimize the operating cost

To reduce power consumption

To increase the accuracy of operation

To share more loads

Question 25 of 37

Question 26 of 37

26. How to protect the cable from insects and rats into the panel?

By using cable binding straps

By using Grommets

By using sleeve

By providing nylon cable ties

Question 26 of 37

Question 27 of 37

27. What is the use of 'G' channels in control panel?

For fixing contactors

For fixing relays

For fixing instruments

For fixing terminal connectors

Question 27 of 37

Question 28 of 37

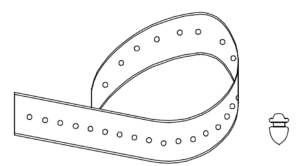

28. What is the name of the accessory used in control panel wiring?

Wire sleeves

Nylon cable ties

Cable binding strap

Wire ferrules

Question 28 of 37

Question 29 of 37

29. Which DC load is represented by the DC4 standard duty cycle of contactors?

Starting and stopping of series motor

Resistive loads except motor loads

Starting and stopping of shunt motor

Starting and stopping with inching and braking

Question 29 of 37

Question 30 of 37

30. What is the reason for providing two separate Earthings in panel board?

Reduce the voltage drop in panel board

Control the stray field in the panel

Panel board is made in metal box

Ensure one earthing in case of other failure

Question 30 of 37

Question 31 of 37

31. Which device is avoided in the panel board assembly?

Sensors

Indicating lamp

Push button switch

Isolating switch

Question 31 of 37

Question 32 of 37

32. Which material is used to make open frame bimetallic adjustable thermostat contacts?

Brass

Copper

Bronze

Silver

Question 32 of 37

Question 33 of 37

33. What is the purpose of thermal overload relay in control panel?

Control the circuit based on time delay

Protect the motor from over heating and loading

Switching ON/OFF the circuit

Protect the circuit from earth fault

Question 33 of 37

Question 34 of 37

34. How are the contacts in a contactor engaged for working?

By operating electromagnet to change the position

By using bimetallic strip to change the position

By manual operation

By mechanical settings

Question 34 of 37

Question 35 of 37

35. Which device controls the operations in sequential control systems?

Control transformer

Timer

Contactor

Relays

Question 35 of 37

Question 36 of 37

36. Which switch is operated at OFF load condition?

Push button switch

Two way switch

Limit switch

Isolating switch

Question 36 of 37

Question 37 of 37

37. Why power and control wirings run in separate race ways?

To reduce heat

To reduce the radio interference

To increase the current carrying capacity

To increase the insulation resistance

Question 37 of 37
